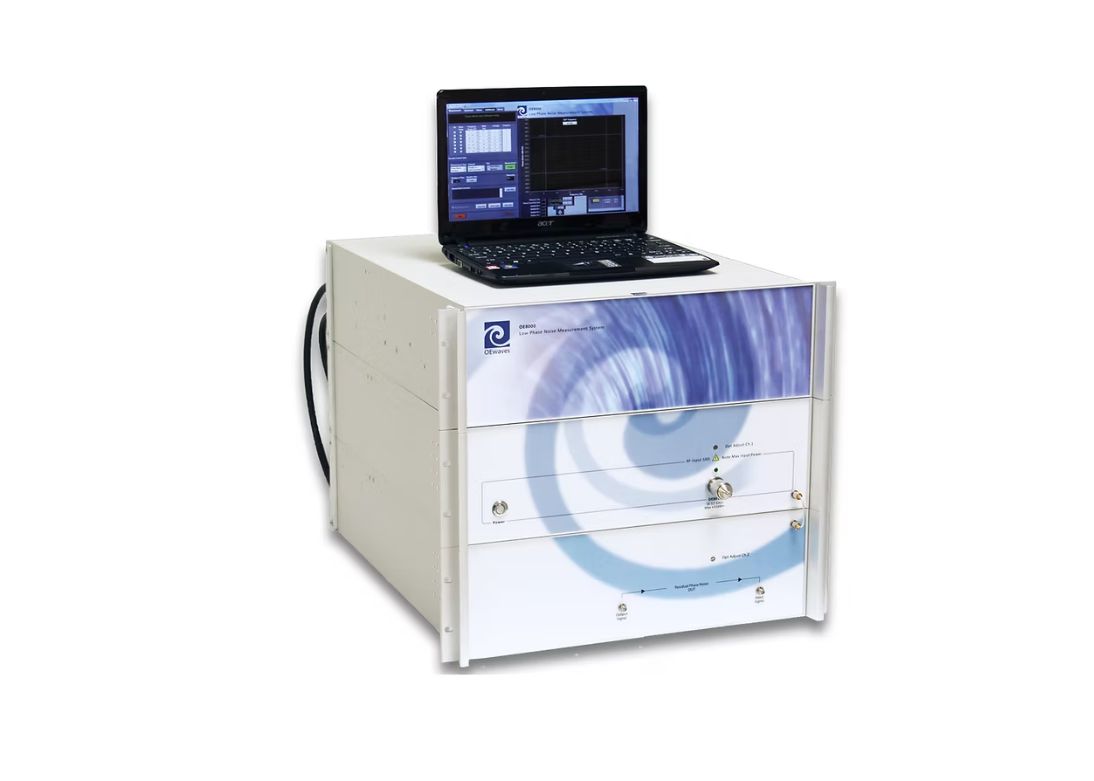

OE8000W

Hi-Q® W-Band Ultra- Low Phase Noise Analyzer

Achieve fast, fully automated measurement of ultra-low phase noise in W-band oscillators and amplifiers. Using advanced microwave photonics, our analyzer achieves wideband precision without the need for an external reference source or mixer. With a simple PC interface, cross-correlation option, and customizable features, this system ensures ease of use, speed, and unmatched measurement accuracy.

Features and Specifications

Features

Ultra-low absolute phase noise/jitter measurement capability
40 -110 GHz extended frequency range
Fast, real-time measurement
Fully automated
Cross-correlation homodyne capability
No low noise reference source required
User-friendly interface
Simple PC-based operation
9U x 19” Rack system
Customizable configurations, upgrades, and options

Specifications

Absolute phase noise floor: 40-110 GHz
RMS timing jitter sensitivity: single channel, +5 to +15 dBm
Measurement Type: Raw data analysis
Data storage and I/O HDD/USB port/ 100 Ethernet Port
Operating Temperature Range: 15°C to 35°C
Power: 110/120 or 220/240 Vac

Optional Configurations

Extended input power: -10 to +15 dBm / +10 to +20 dBm
RMS jitter & cross-correlation option
AM noise measurements
2-port residual phase noise measurements

More Info

HI-Q® W-Band Phase Noise Analyzer is fast and fully automated and yields the spectral density of the phase noise of a millimeter wave signal source or amplifier at any operating frequency within the specified band. This homodyne-based system is unique in wide frequency band measurement without requiring external low noise reference source or mixer, as required in conventional heterodyne approaches. The system operates with ease, speed, and precision using a simple graphic user interface via a notebook PC. The system offers ultra-low phase noise floor with cross-correlation option among other customizable features and configurations.
